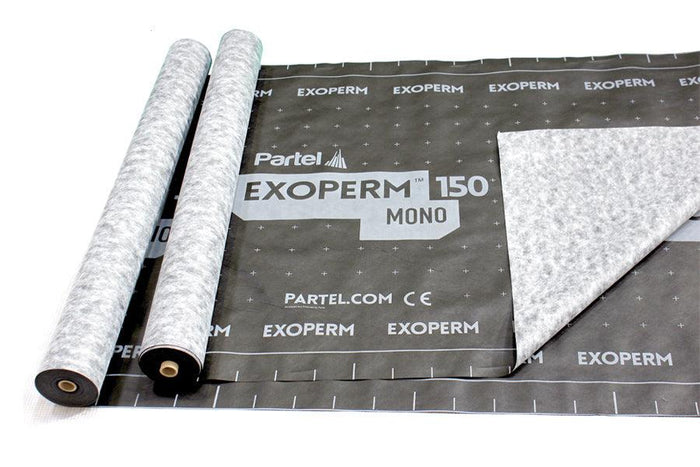

Exoperm Mono 150 - Breathable Monolithic Membrane

Regular price $284.00 Sale

Availability: In Stock Out of Stock

Vendor: Partel

SKU: EXO1501500


Next generation monolithic membrane

Why Partel EXOPERM MONO 150?

EXOPERM MONO 150 provides the best protection of the building structure; It's different, it's stronger with market-leading tensile and tear strengths. It is also, incredibly vapour open and highly breathable (Sd 0.07 m). The Monolithic TPE layer creates a complete wind tight, waterproof membrane that expels any water/humidity.

  • Highly breathable membrane (Sd 0.07 m)
  • High resistance to penetration of water (W1)
  • Ideal Airtightness and vapour transmission
  • 3 strong layers of protection – elastic monolithic TPE film between 2 non-woven PP fleeces
  • Excellent ageing resistance due to the Monolithic Technology
  • Excellent weather resistance and good thermal stability (-40 °C to 80°C)
  • Windtight, Highly diffusion open
  • Optimal UV stability
  • Helps to avoid structural damage
  • Easy installation in all seasons

Technical Data

WEIGHT EN 1849-2 140 G/M²
SD-VALUE M EN ISO 12572-C 0.07 M
WATER RESISTANCE EN 1928 W1 (BEFORE & AFTER AGEING)
TENSILE STRENGTH MD/CD EN 12311-1 305 / 175 N / 50MM
NAIL TEAR RESISTANCE MD / CD EN 12310-1 155 N / 190 N
TEMPERATURE RESISTANCE   -40°C TO 80°C
UV RESISTANCE   3 MONTHS

Application

  • External use
  • Roof and wall
  • Suitable for all insulation types

Monolithic Technology

  • 3-Ply sarking, roof underlay and wind barrier with Next Generation Monolithic TPE functional layer
  • TPE membrane transports vapour to outside. The TPE functional layer located in the middle of the product is vapor open whilst having excellent waterproofing properties
  • The Monolithic TPE layer creates a complete wind tight, waterproof membrane that actively expels out any water/humidity unlike most micro-porous membranes that rely on small pores (which have the tendency to block)

Dimensions

  • 1.5m X 50m=75m2 (59-1/16” X 164’-1/2” = 807 SF)
  • 3m X 50m=150m2 (9’ 10-1/3”” X 164’-1/2” = 1615 SF)
